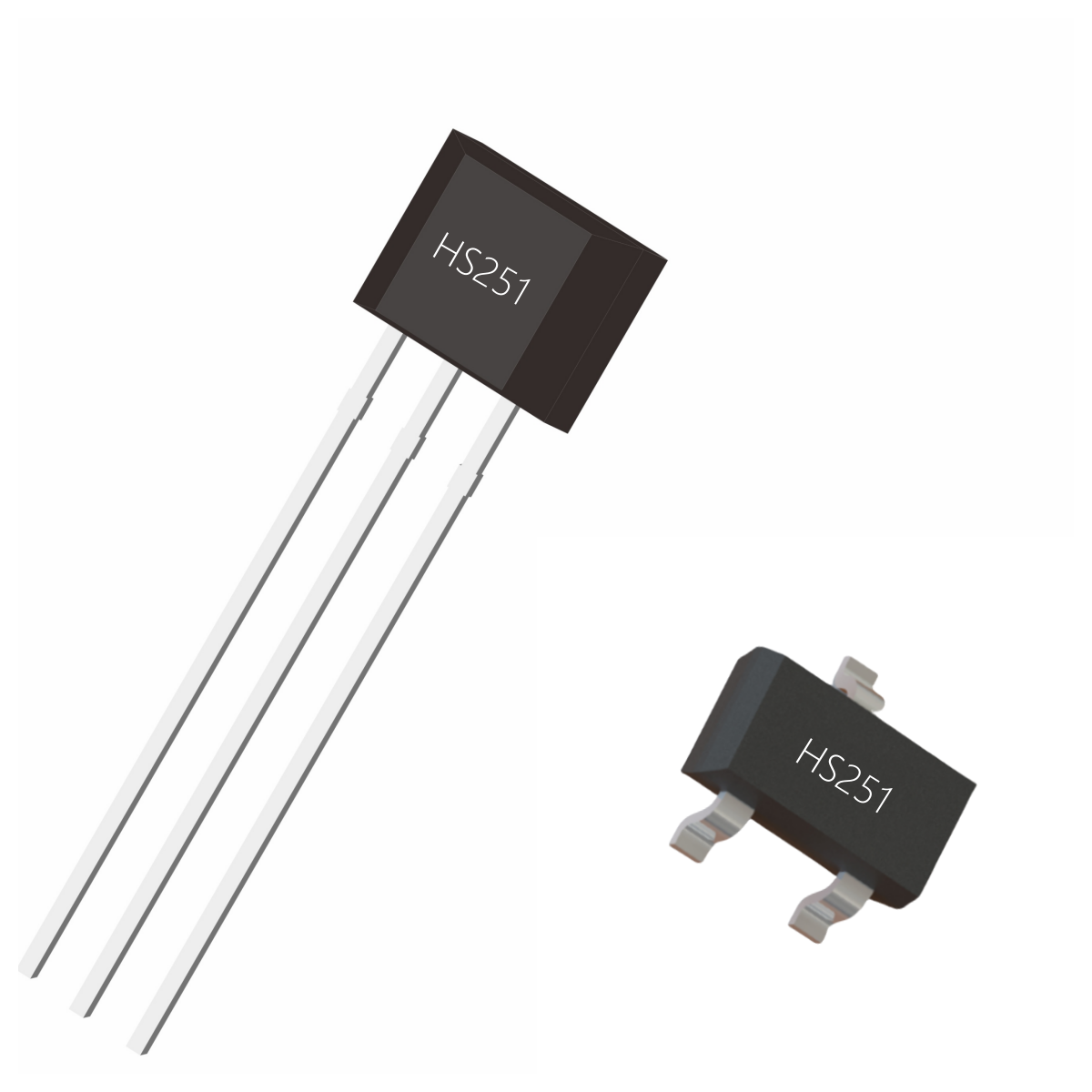

HS251 omnipolar high sensitivity Hall switch
- Product Detail
The HS251 Hall Effect Sensor is a temperature-stable, stress-resistant, and highly sensitive micropower switch. Excellent high-temperature performance is achieved by using chopper-stabilized dynamic offset cancellation. This approach reduces offset voltage, temperature dependence, and thermal stress caused by device overmolding.
The HS251 is designed specifically for low operating voltages, and the CMOS manufacturing process used takes advantage of low voltage requirements, component matching, very low input offset errors, and small component geometries.
The HS251 sensor requires the presence of an omnipolar magnetic field for operation. The package type is a halogen-free version, which has been verified by a third-party laboratory. It can replace many domestic Hall products. Foreign Honeywel*, Allerg*, AK*, etc. can also be adapted.
The HS251 is designed specifically for low operating voltages, and the CMOS manufacturing process used takes advantage of low voltage requirements, component matching, very low input offset errors, and small component geometries.
The HS251 sensor requires the presence of an omnipolar magnetic field for operation. The package type is a halogen-free version, which has been verified by a third-party laboratory. It can replace many domestic Hall products. Foreign Honeywel*, Allerg*, AK*, etc. can also be adapted.
Product features
1.CMOS technology
2.Strong resistance to environmental magnetic field interference
3.Omnipolar output can respond to the north or south pole of the magnet
4.Operating voltage as low as 1.65V
5.Suitable for replacing reed switch
6.Low switch point drift
7.Ultra-low power consumption, 5uA (average)
8.High ESD protection, HMB>±4KV (minimum)
9.Push-pull output
2.Strong resistance to environmental magnetic field interference
3.Omnipolar output can respond to the north or south pole of the magnet
4.Operating voltage as low as 1.65V
5.Suitable for replacing reed switch
6.Low switch point drift
7.Ultra-low power consumption, 5uA (average)
8.High ESD protection, HMB>±4KV (minimum)
9.Push-pull output
Main applications
1. Solid-state switch
2. Handheld wireless handset wake-up switch (flip phone/tablet/notebook)
3. Low duty cycle magnetic sensor switch to replace reed tube
4. Water meter
5. Liquid level meter
6. PDVD
7. Laptop

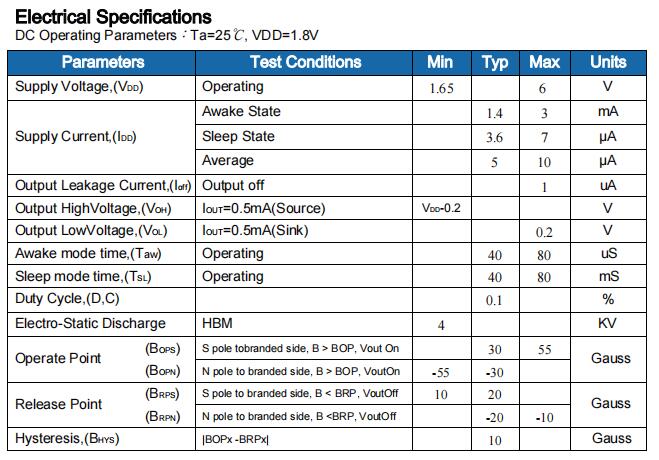

Product parameters
