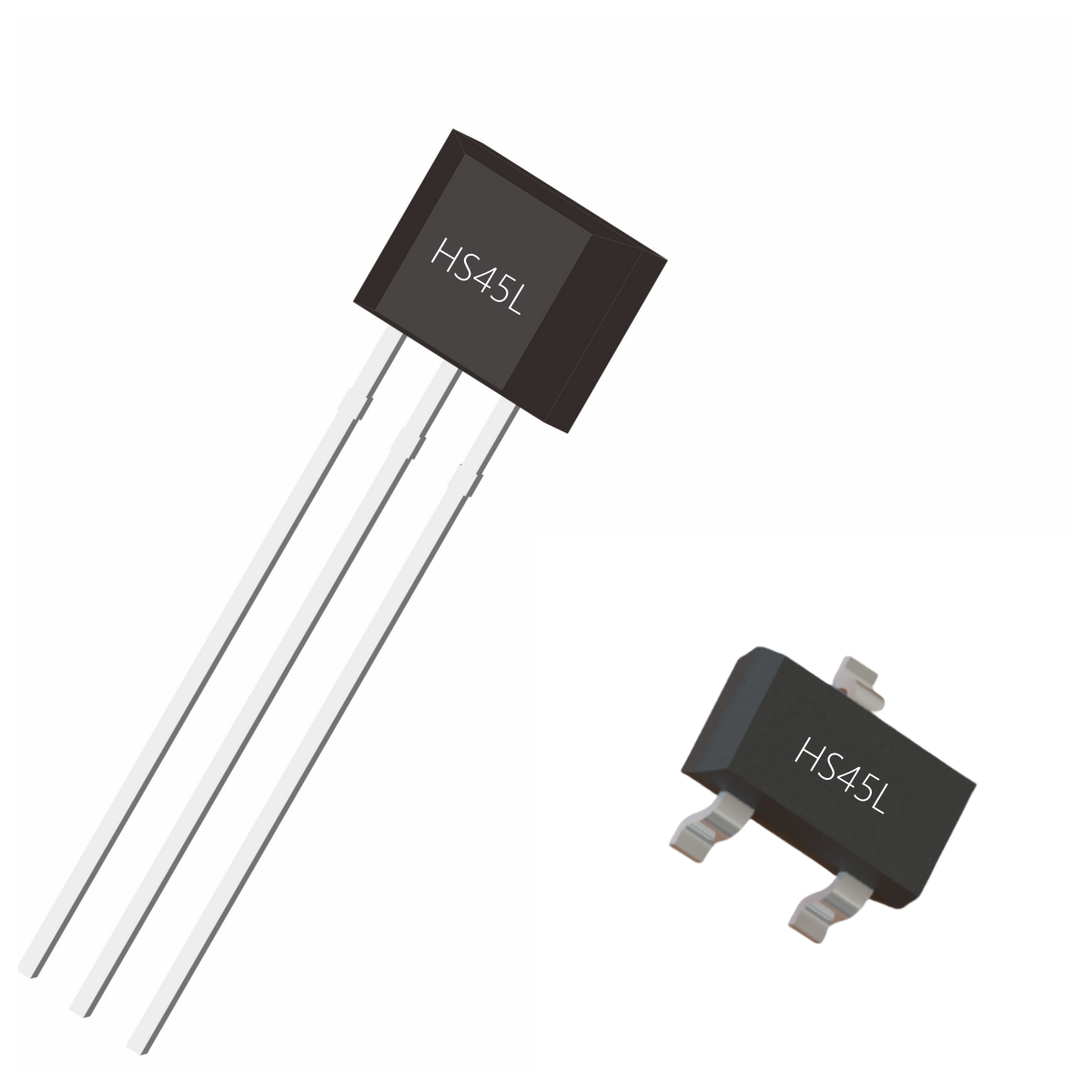

HS45L non-polarity wide voltage high frequency Hall IC
- Product Detail
The HS45L is an omnipolar Hall-effect sensor based on mixed-signal CMOS technology. This IC uses advanced chopper stabilization techniques to provide accurate and stable magnetic switch points.
The output transistor of the HS45L is locked in the on (BOP) state in the presence of a strong south or north magnetic field on the side facing the package marking, and is locked in the off (BRP) state in the absence of a magnetic field.
Product features
2. Omnipolar output switch
3. Operating voltage can be as low as 3.5V
4. High sensitivity
Main applications
1. Solid-state switch
2. Speed detection
3. Interrupter
4. Direct reed switch replacement application
