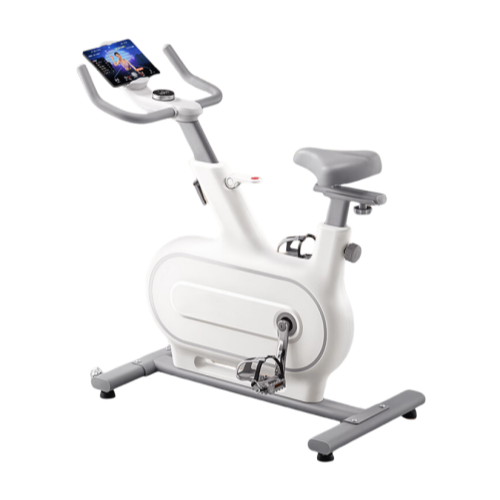

The Hall switches in spinning bikes are mainly used to monitor and control the speed and motion state of the wheels. Usually, the Hall switches are installed on the transmission system or wheels of the spinning bike. When the rider starts to pedal, the wheels start to rotate, which also causes changes in the magnetic field. The Hall switch can sense these magnetic field changes and convert them into corresponding electrical signals. By analyzing these signals, the spinning bike can monitor the riding speed, mileage and other related data in real time.

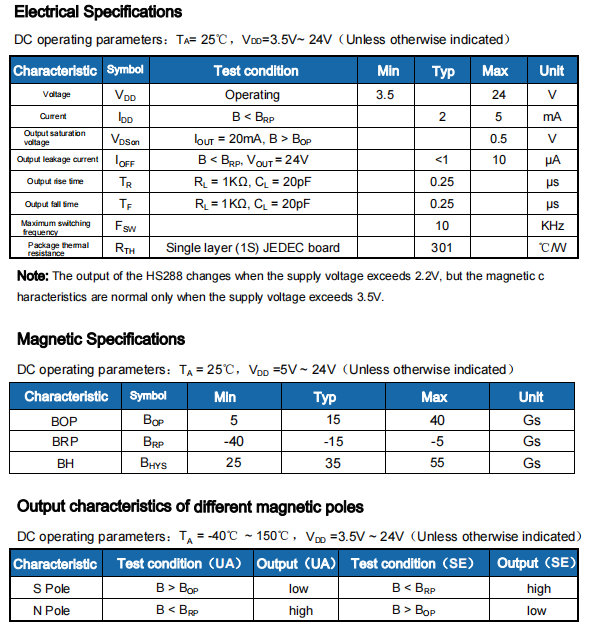

Recommended model: HS288 bipolar latch high-sensitivity Hall element
HS288 is a bipolar latch Hall effect sensor based on mixed-signal CMOS technology. The device integrates a voltage regulator, a Hall sensor with a dynamic bias compensation system, a Schmitt trigger and an open-drain output driver, all in one package.
This IC uses advanced chopper stabilization technology to provide accurate and stable magnetic switch points. In addition to the applications listed in the "Applications" below, this sensor has many other applications. Its design, parameters and performance are optimized for use in 5V-12V DC brushless motor phase conversion applications.
Because of the wide operating voltage and wide temperature range of the HS288, it is very suitable for use in the automotive, industrial and consumer industries.
This IC has a SOT package for surface mount and a single-row direct-plug TO-92S flat package that can be directly inserted. Both 3-pin packages are RoHS compliant.
