HS220 Unipolar Hall Switch Circuit

HS220 is a unipolar Hall effect switching IC manufactured using advanced BiCMOS processes, with excellent temperature stability and high mechanical stress resistance, achieving the highest operating performance of the product

The temperature can reach 150 ℃.

HS220 adopts dynamic misalignment elimination technology and temperature compensation technology protected by chip in electronic patents, greatly reducing factors such as packaging stress and environmental temperature changes.

HS220The resulting voltage imbalance results in a high degree of consistency in the magnetic sensitivity of the product.

HS220 includes a voltage stabilizing output module, Hall wafer, signal amplification module, dynamic offset elimination module, and a power output stage with current limiting protection. The built-in voltage stabilizing output circuit module can Let the chip operate within the range of 2.5V to 28V power supply voltage.

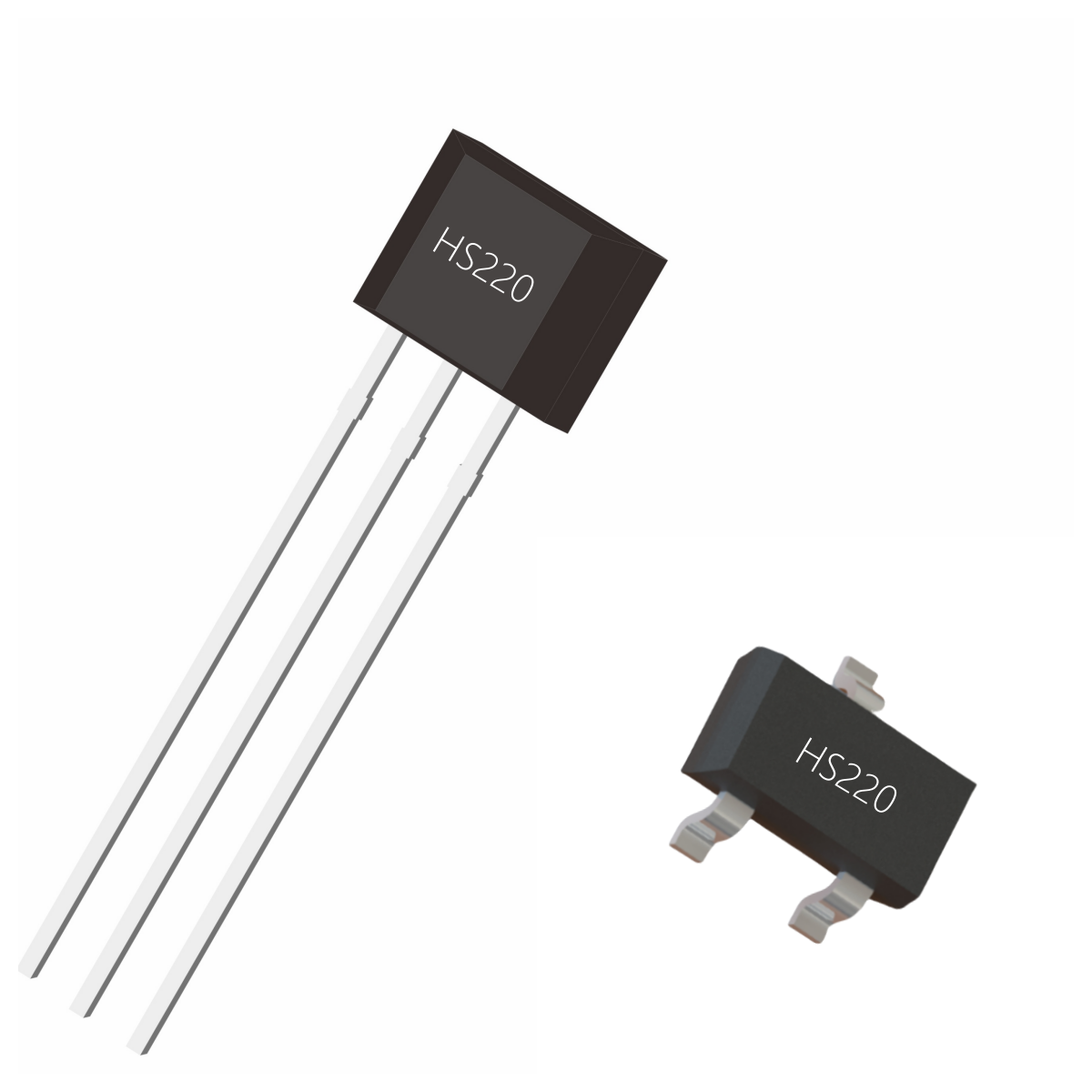

HS220 offers two packaging options, TO-92S and TSOT23-3, both of which comply with RoHS standards. The product's operating temperature range is -40~150 ℃.

Product Detail

The temperature can reach 150 ℃.

HS220The resulting voltage imbalance results in a high degree of consistency in the magnetic sensitivity of the product.

HS220 offers two packaging options, TO-92S and TSOT23-3, both of which comply with RoHS standards. The product's operating temperature range is -40~150 ℃.

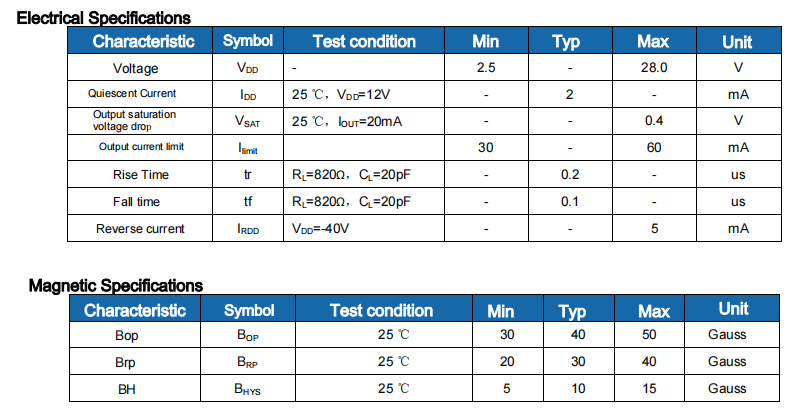

Product features

1. Wide operating range, 2.5~28V
2. Reverse voltage protection, up to -40V
3. With chopper stabilization function, good consistency between batches
4. 30V overvoltage protection to prevent IC damage due to power supply voltage pulses
5. Excellent temperature stability, can work up to 150℃
6. Output stage current limiting protection 30mA
7. Output stage 36V overvoltage protection to prevent output pins from being broken down by interference voltage Small size, TO-92S and TSOT23-3 package
8. Anti-mechanical stress
9. ESD HBM 4000V
