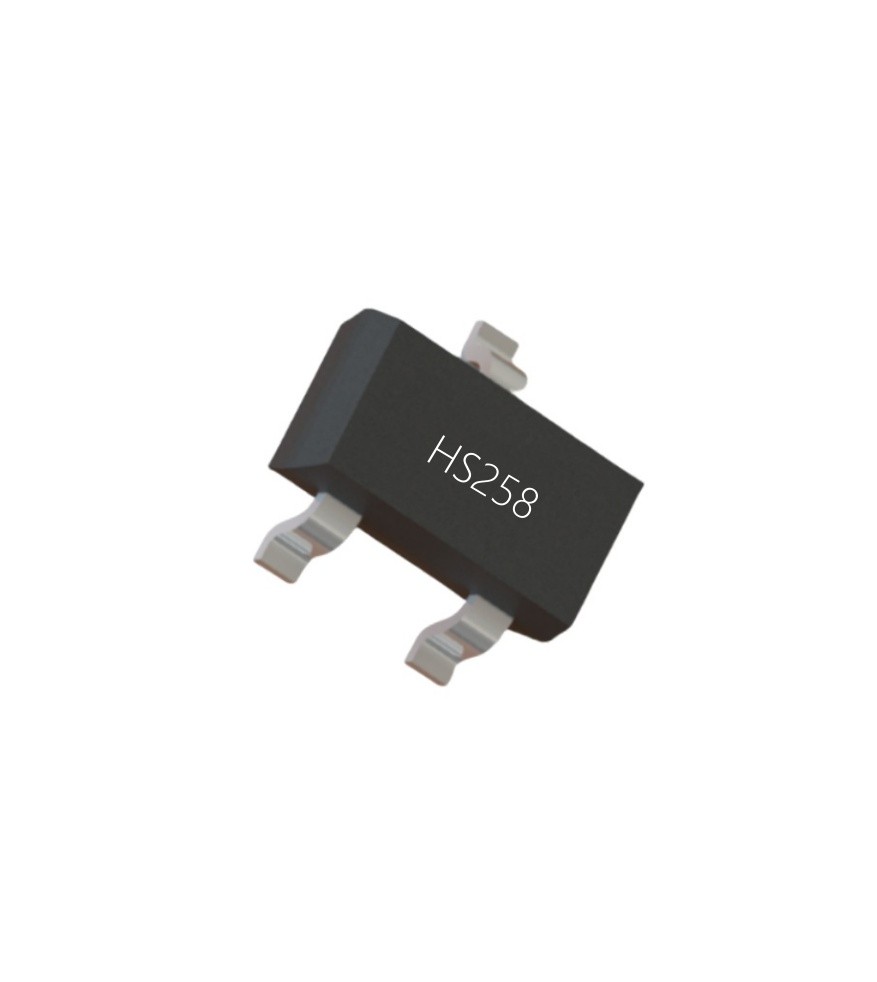

HS258 Unipolar Massage Chair Hall IC Circuit
- Product Detail
HS258 is a unipolar Hall effect switch IC, manufactured using advanced BiCMOS process, with excellent temperature stability and high mechanical stress resistance, the product's maximum operating temperature can reach 150°C.
HS258 uses dynamic offset elimination technology and temperature compensation technology to significantly reduce the offset voltage caused by factors such as package stress and ambient temperature changes, making the product's magnetic sensitivity highly consistent.
Product features
2. Extremely high magnetic sensitivity
3. CMOS process
4. Stable chopper amplifier
5. Excellent temperature stability, extremely low switch point drift, insensitive to physical stress
6. Low current consumption
7. Open drain output
8. SMD SOT23-3L package complies with RoHS standards
Main applications
1. Automotive, consumer, industrial solid-state switches
2. Circuit breakers
3. Speed detection
4. Linear position detection
5. Angular position detection
6. Proximity detection

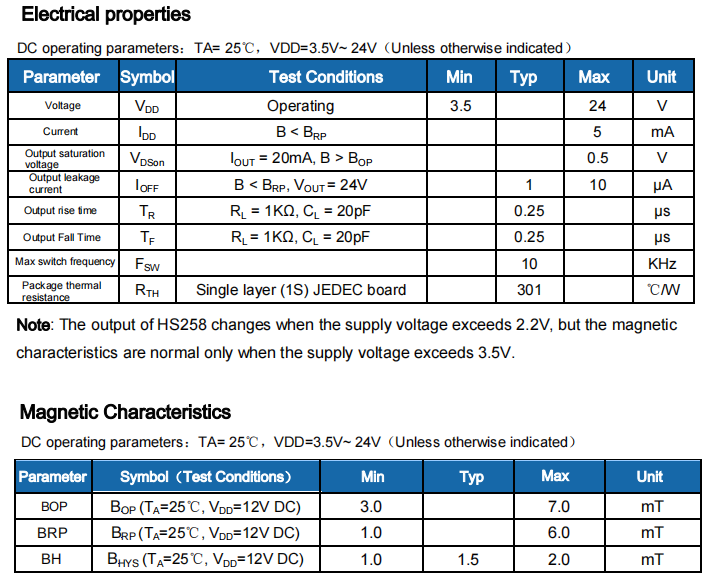

Product parameters
