Original supply of high temperature Hall chip CC6111 to replace ES581

CC6111 is a unipolar Hall effect switch IC, manufactured using advanced BiCMOS process, with excellent temperature stability and high mechanical stress resistance, the product's maximum operating temperature can reach 150℃. CC6111 uses dynamic offset elimination technology and temperature compensation technology to greatly reduce the offset voltage caused by factors such as package

stress and ambient temperature changes, making the product's magnetic sensitivity highly consistent.

CC6111 includes a voltage regulated output module, a Hall chip, a signal amplification module, a dynamic offset elimination module,and a power output stage with current limiting protection. The built-in voltage regulated output circuit module allows the chip to operate in a power supply voltage range of 2.5V to 28V.

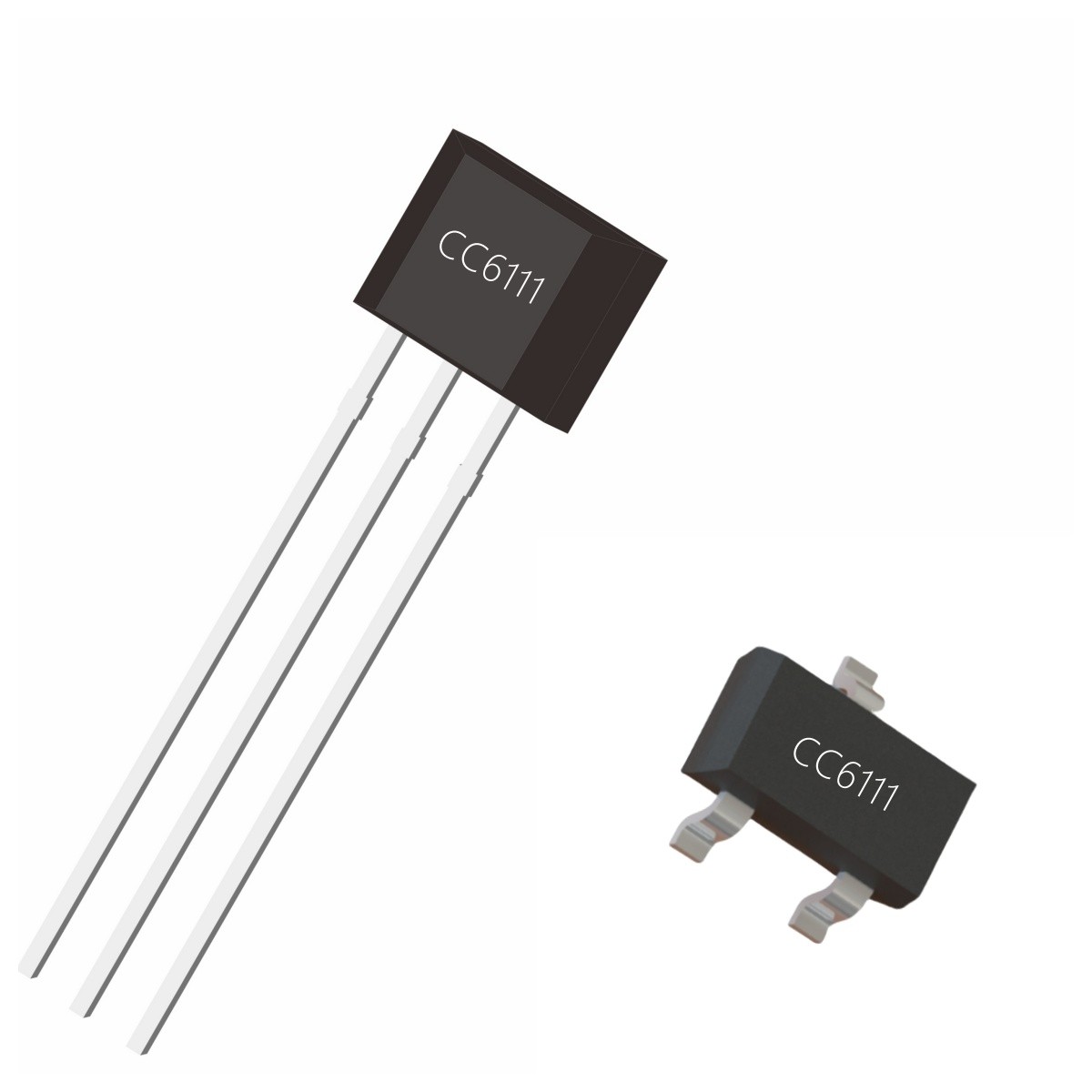

CC6111 is available in two packages, TO-92S and TSOT23-3, both of which comply with RoHS specifications. The product's operating ambient temperature range is -40~150℃.

Product Detail

stress and ambient temperature changes, making the product's magnetic sensitivity highly consistent.

CC6111 is available in two packages, TO-92S and TSOT23-3, both of which comply with RoHS specifications. The product's operating ambient temperature range is -40~150℃.

Product features

1. Wide operating range, 2.5~28V
2. Reverse voltage protection, up to -40V
3. With chopper stabilization function, good consistency between batches
4. 30V overvoltage protection to prevent IC damage due to power supply voltage pulses
5. Excellent temperature stability, can work up to 150℃
6. Output stage current limiting protection 30mA
7. Output stage 36V overvoltage protection to prevent output pins from being broken down by interference voltage Small size, TO-92S and TSOT23-3 package
8. Anti-mechanical stress
9. ESD HBM 4000V
